SharePoint Basics - Part 4

In SharePoint by using List we can store the information. List is devided into 2 types, they are
1.Lists
2.Libraries

Lists : A list is a repository where data is stored systematically and displayed in SharePoint. Different types of lists are available in SharePoint 2010. We can see these lists by the following way.

1.Open site collection in a browser.
2.Go to "Site Actions" ---> select "More Options" ---> select "List" in Filter By section
3.It will show you all the available predefined lists

The predefined lists are :
1. Announcements
2. Calender
3. Contacts
4. Custom list
5. Custom list in Datasheet view
6. Discussion board
7. External list
8. Import Spreadsheet
9. Issue Tracking
10. Links
11. Project Tasks
12. Status list
13. Survey
14. Tasks

Let us start discuss about the purpose of lists and how they are creating in the following.

1) Announcements :
It is a predefined list and is used to create daily announcements, weekly announcements, monthly announcements and yearly announcements.

ex: 1) Yearly announcements like "Please submit your TAX details on or before
         31 march,2013 "
     2) Daily announcements like "Dear team, please attend for project meeting
         today at 5 PM"

How to create Announcements :
1.Open site collection in a browser
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists)
3.Select "Announcements" list
4.select More Options on right side and enter the Title and Description
5.Click on Create
6.List will successfully created
7.Click "Add new announcement"
8.Enter the details for announcements

The announcement list looks like

2) Survey :
Survey is a predefined list, is used to get feed back from users, employees and customers. In Survey, user  can add n number of questions and the answers as choice, rating and drop down list...

We can see graphical summary of all responses, by default user can respond only once

Steps to create Survey List :

1.Open site collection in a browser
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists)
3.Select "Survey" list
4.select More Options on right side and enter the Title and Description
5.Enter questions and select options as "choice" or "rating" field.
6.After entering all questions, click ok
7.If users want to respond to the survey, just select "Respond to this survey" to submit survey.
8.If you want to see all the responses, just click "show all responses".
9.If you want to see graphical summary, select "show a graphical summary of response"

Note : If you want to hide the user's name in survey results, while creating survey, select "More options" ---> select option "No" for show user names in survey results.

3) Discussion Boards :
This list is used to communicate people with in the organization, one branch people can communicate with  another branch people.

In discussion board, you can place an item for discussion. The discussion board make it easy to manage discussion threads on configure the related users.

Steps to create Discussion Board :

1.Open site collection in a browser.
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists).
3.Select "Discussion Board" list.
4.Enter name, click on  Create
5.Select "Add new subject", write the subject line and body.
6.Press "Save"

The following pic is the example of discussion board



4) Issue Tracking :

Using the Issue tracking list, you can post an issue associated with the project or Team. You can assign, priority and track the issue status.

Issue Tracker mainly contains 3 states. They are

     1.Active

     2.Resolved

     3.Close

Steps to create Issue Tracking :

1.Open site collection in a browser.
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists).
3.Select "Issue Tracking" list.
4.Enter name as "Project Issues", click on  Create.
5.Click on "Project Issues", click add new item.
6.Enter title, assigned to, issue status (by default Active), priority, description, category, related issues, comments, due date.
7.Click on save
8.Now your issue is now created successfully.

The target user received the mail and logged into the site with credentials and do the following.

1.Opens the site collection
2.Click on "Project Issues" list
3.Click on Title
4.view the information
5.Fix the issue
6.Update the server
7.Change the issue status as "Resolved"
8.Click on save

Again the tester will logged into the site, based on Issue modification (Resolved) test the functionality, against the issue change its status to closed. Click on Save.

5) Contacts :
Using the contacts list, you can place the details of your team members or customers or partners etc.

Steps to create Contacts list :

1.Open site collection in a browser.
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists).
3.Select "Contacts" list.
4.Enter name and click "Create".
5.Click on "Add new Item".
6.Add the related information.
7.Click on "Save"

The item will successfully added to the contacts list. The following is the Contacts list image.

6) Links :
Using the Links list we can provide the link to other pages, website and internal site for the end user resource requirement for sharing.

Steps to create Links list :

1.Open site collection in a browser.
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists).
3.Select "Links" list.
4.Enter name and click "Create".
5.Click on "Add new link".
6.Enter the URL, description and notes.
7.Click on Save.


7) Tasks :
Using the Tasks list, you can place a task to a team or personal.

Steps to create Tasks list :
1.Open site collection in a browser.
2.Go to Site Actions ---> select More Options ---> select "List" in Filter By section (displays all the predefined lists).
3.Select "Tasks" list.
4.Enter name and click "Create".
5.Click on "Add new item".
6.Enter the details like title, priority, status, complete, assign to, description, start date and end date.
7.Click on Save button.

The item will be added to the Tasks list. Internally the mail will be fired to the assigned user.

The assigned user logged into the site, click on Tasks list. He will find Tasks and his name. He can do like

1.Click on title
2.Update the task details
3.Click on save.

SharePoint Basics - Part 3

Definitions to be Remembered:

Web Application : A web application is an application that is accessed by users over a network such as the Internet or an intranet.

Portal : A portal is a central place for making all types of information accessible to an audience of varying range.

Site Collection : A site collection is a group of Web sites that have the same owner and share administration settings, for example, permissions. When you create a site collection, a top-level site is automatically created in the site collection. You can then create one or more sub sites below the top-level site.

A site collection must exist within a Web application. You can create a site collection based on an existing Web application, or you can create a Web application and then create a site collection within that application.

Steps to create a Web Application :

Open Central Administration site ---> Application Management --->  select "Manage Web Applications" --->  select "New" in ribbon

Select these options to create a sample web application

1. Authentication : Classic mode authentication
2. IIS Web Site : Select Create a new IIS website
3. Name : MyDemoSite
4. Port : 5555
5. Host Reader
    Path : C:\inetpub\wwwroot\wss\Virtual Directories\5555
6. Security Configuration
   Authentication Provider : NTLM
   Allow Anonymous :   no
   Use Security Socket Layer : no
   Public URL : http://Server name:5555
7. Application Pool
    1)Create a new application pool
       Application pool name : MyDemoSitePool
    2)Select a security account for this application pool
       select "Predefined" radio button and select "Network Service".
8. Database Name and Authentication
    Database Server : Server name\SharePoint
    Database : MyDemoSite_Content_5555
    Database Authentication : Windows Authentication
9. Click on OK

The web application is now created. By default, no new site collections are created in this web application. So to create site collection click on the "Create site collection link"  on the bottom of window which will displayed.
(or)
Go to Central Administration ---> Under Application Management, select "Create Site Collection"

Steps to create Site Collection :

1. Title : MyDemoSiteCollection
2. Description :
3. Select the template (example : select TeamSite template )
4. Primary Site Collection Admin : Administrator
5. Secondary Site Collection Admin : Administrator
6. Quota Template : No Quota
7. Click on OK
8. You will get message like Top-level site successfully created & you will find a link (http://servername:<portno>)
9. click on it
10. It opens in the new window & enter the authentication credentials. Now the site will be open.

The following  is the MyDemoSite site collection home page.

(click the image to view in bigger size)

SharePoint Basics - Part 2

SharePoint 2010 Architecture :

Advantages of SharePoint :

1. Rich user interface like easy site editing, branding and ribbon control.
2. Automated E-mails and SMS's.
3. Integration of Microsoft Office products.
4. Reports in pdf, word and other formats.
5. Easy customization
6. Integration of Ajax, WCF, LINQ, Silverlight concepts.

SharePoint Site Hierarchy :

SharePoint Basics - Part 1

SharePoint :
SharePoint is a browser based application platform from Microsoft, to provide secured document management system and collaboration environment.

Secured Document management system :
It enable end users to send documents securely from SharePoint user interface to anyone within the organization or outside of the organization. It means apply persistent protection to documents, restricting, downloading, copying, printing and forwarding.

Collaboration Environment :
It is a term used to combine all the people working together in a single environment.

Another definition for SharePoint :
SharePoint 2010 is a platform where user can share Data, Collaborate and people can also take this platform and customized platform as per their requirements.

From the below figure, clearly we can understand what is SharePoint.

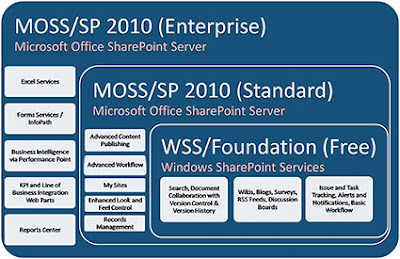

Versions of SharePoint :

There are two flavours of SharePoint 2010. They are

1. SharePoint Foundation 2010 and

2. SharePoint Server 2010.

SharePoint Foundation is a free version, we don't have to pay any money for SharePoint Foundation.  Look at the end user requirements, if SharePoint Foundation is enough to develop those requirements, no need to go to purchase a paid version. SharePoint Foundation  has limited features.

SharePoint Server 2010 is a paid version. The paid version includes all of the free version's features plus things like My Profiles, enterprise search,  and business intelligence features. Again these are just a very few of the many features included.

Here are the differences in features  between a free version and a paid version.

Service Application SharePoint Foundation 2010 SharePoint Server 2010 Standard SharePoint Server 2010 Enterprise Access Services No No Yes Application Discovery and Load Balancer Service Yes Yes Yes Business Data Connectivity Service Yes Yes Yes Excel Services No No Yes Managed Metadata Service No Yes Yes Performance Point Service No No Yes Search Service No Yes Yes Secure Store Service No Yes Yes Security Token Service Yes Yes Yes State Service No Yes Yes Usage and Health Data Collection Yes Yes Yes User Profile Service Application (including My Site) No Yes Yes Visio Graphics Service No No Yes Web Analytics Service No Yes Yes Word Automation Services No Yes Yes
SharePoint Foundation 2010 is a core framework on which SharePoint Server 2010 actually stands.
Hardware and Software Requirements : Hardware Requirements : 1.Processor - 64-bit 2.RAM - 4 GB for developer or evaluation use (6 GB is preferred) and             8 GB for production use in a single server or multiple server             farm 3.Hard disk - 80 GB for system drive   (For production use, you need additional free disk space for day-to-day     operations. Maintain twice as much free space as you have RAM for    production environments)
Software Requirements :  1.64-bit Windows Server 2008 or 64-bit Windows Server 2008 R2 2.64-bit SQL Server 2008 or SQL Server 2005.   * SQL Server 2005 requires Service Pack 3 plus cumulative update     package 3 for SQL Server 2005 Service Pack 3.   * SQL Server 2008 requires Service Pack 1 plus cumulative update     package 2 for SQL Server 2008 with Service Pack 1 (KB970315)   * SQL Server 2008 R2 will be supported at its RTM (Release to     Manufacture) build or later. 3.SharePoint Server 2010 (64-bit only). 4.Windows Vista SP1 and later   * Business edition   * Enterprise edition   * Ultimate edition 5.Windows 7 RTM and later   * Professional edition   * Enterprise edition   * Ultimate edition 6.Other software requirements   * IIS 7.0   * Active Directory Domain Controller   * DNS Server   * SMTP email Server   * .NET 3.5 with SP1 (even if 4.0 is already installed)   * Visual Studio 2010   * SharePoint Designer 2010   * MS-Office 2010   * InfoPath 2010
Supported Web browsers : 1.Internet Explorer 7 or later (32-bit versions of this browser are fully   supported, 64-bit versions have limited support) 2.Firefox 3.6 and higher - limited support. 3.Google Chrome (latest version) - limited support. 4.Safari (latest version) - limited support

Design a Classical WebPart

1. Add a reference "System.web"
    Then you will get the following namespaces
    System.Web.UI;
    System.Web.UI.WebControls;
    System.Web.UI.WebControls.WebParts;

2. We should inherit the class from "WebPart" base class

3. WebPart base class contains the methods like CreateChildControls( ) and
    Render(HTMLTextWriter writer).

    CreateChildControls( ) is a method is useful  to create controls with in a
    WebPart  and Render( ) method is used for rendering the content on the
    webpage.

4. we can override these two methods

WebPart Notes - Part 1

1.WebParts are highly customizable and reusable components(contains predefined functionality).

2.Webparts can be developed, deployed and that can be used any no of times in sharepoint site.

3.Generally WebParts are used to display the data from various sources like lists, libraries, forms, search results, and other pages.

4.Extension of WebPart is
  .dwp (in older versions)
  .webpart (in Moss 2007 and SharePoint 2010)

5.WebParts can be placed within WebPart  zones only.

6.WebPart zone is a container control, we can place different types of controls    like
   1. HTML controls
   2. Webserver controls
   3. Webuser controls
   4. Custom controls
   5. Ajax controls
   6. WebParts controls

7.We can place any no of WebParts n a WebParts one and A single page may contain any no of WebPart zones.

8.There are 3 levels in WebParts.
   1. Creating webpart
   2. Deploying webpart
   3. Use the webpart

9.While creating WebParts, we should inherit the class from "WebPart" base
   class.
   example: class class1 : WebPart
                {

                   // logic here

                 }

10.What is the difference between Normal page and WebPart page?
Normal page does not contain webpart zone, where as webpart page has WebPart zones.

Interview Questions asked by MNC companies

Accenture interview questions:

1)Tell me about your sharepoint experiences ?
2)Did you ever worked in Web Services ? How you called Webmethods ?
3)What type of Webparts you are developed in your current project ?
4)How many ways we can deploy the webpart ? Which is the best method to

   deploy the Webpart ?
5)What are new features in MOSS 2007 ?
6)What are the permission levels in Sharepoint ?
7)What is Sharepoint Object Model ?
8)What are basic building blocks for Sharepoint ?
9)How many types of Event Handlers in Sharepoint ? where did you use

   these event handlers in your project ?

10)What are the Security levels in Sharepoint ?
11)What is the default authentication level in Sharepoint ?
12)Can we impliment Forms Authentication in Sharepoint or is there any

     custom Authentication ?
13)What is meant by SignIn ?
14)What is meant by MetaData Cache ?
15)How can you impliment Data Fragment cache ? What is VaryByParam ?
16)When configuring Enterprise Search?

TCS questions:

1)Difference between WSS 2.0 , WSS 3.0 , MOSS 2007 ?
2)Difference between Windows Sharepoint Services and Portal Services ?
3)How to deploy and debug Webparts in Sharepoint ?
4)How can we apply Authentication in MOSS 2007 ?
5)How to use dataview webpart in Sharepoint Designer (SPD) 2007 ?
6)How to customize XSLT code in Dataview Webaprts using Sharepoint

   Designer (SPD) 2007 ?
7)Which provider is better in Visual Studio ? like OLEDB and Sqlserver .
8)How to integrate Active directory user to public site(internet site)
9)Which Workflow are used in Sharepoint Designer , how can i executed

   Workflow ?
10)How can i get List of items in your site using API coding ?

Value labs questions:

1)How to set forms authentication in your Sharepoint sites ?
2)What Content types used in MOSS 2007?
3)How to create new Templates in Sharepoint Server 2007 ?
4)What is Workflow ? default work flows in sharepoint server ?
5)How can i create new workflows in VS 2005 ? with real time example ?
6)What is Infopath template  ? how can i set browser configuration in

   Infopath?
7)what is used for browser enabled infopath ?
   how can enable code in your infopath form ?
8)Differences between WSS 3.0 and MOSS 2007 ?
9)How to deploy Webparts in your Sharepoint by using SPD and VS ?
10)How to create Sharepoint solutions ? what is .cab file?
11)How can i set workflow history in sharepoint property ?

Wipro questions:

1)What is the use of master page? Can you tell me , I want to put the

   Drop-down control in master page, and this dropdown control should

   populate the data from database?
2)How can you create and deploy the workflows by using Visualstudio 2005,

   tell me the step-wise?
3)Can you tell me how to create the HRLeaveapproval workflow by using

   SPDesinger?
4)What is the use of infopath forms?

   I have the List called ”Employees”,in that there is a Field called ”

   Department”,

   I want to Fill the Department names in the infopathform control

   (eg: Take the Dropdown control , i want to fill this Department names in

          Dropdowncontrol )
5)10 users entering the data in infopath forms and submit the data, now i

   want to generate the reports for those 10 users, how can you do this?
6)What is the use of BDC ?
7)How can you Configure the Enterprise Search?
8)What are the Base class methods you used in developing custom

   Webparts ?
9)How many ways you can deploy the custom webparts ? with out install in

   GAC, is there any other way to deploy ?
10)About Execl Services,
11)Feature event receivers Classes?
12)What is the use of “Run with elevated Previliages”?

Technics integration technologies interview questions:

1)What is Feature and its Deployment Types?
2)About WSP builder?
3)What is feature.xml and element.xml?
4)Write a program to enter the items in Sharepoint List?and How to add the

   Users in your Current Site?
5)What is DDF? and About solution packages?
6)Event Handlers?
7)Search Configuration and Excel Services Configuration in MOSS 2007?
8)What about Service accounts?
9)What are the pillers of sharepoint?

10)Infopath forms?
11)How many ways to create workflows?Which is the best?
12)What is the Base Class of the Webpart? and About Content Edit

    Webparts?

13)About your Project details and roles & responsbilites?
14)What is the Sandbox Solutions?Why we are using that?
15)Migration from MOSS 2007 to Sharepoint 2010?How many types?Which one

    is the best?
16)Authentication Types in Sharepoint 2010?
17)What is  the Alternate Access Mapping?
18)Write a program to retraive the data from all lists in sharepoint?
19)What is the managed path?
20)Difference between Shared Service Provider and Shared Service Application?
21)How to publish the content type in Sharepoint 2010
22)What is the Managed meta data Service?
23)Difference between  list and Library?
24)How to move the list from one site to another site?
25)How to move the data from Development server to Production server?
26)What is the Runwith Elivated Privilliages?
27)Error handling or coding in infopath?
28)How to access the LINQ in Sharepoint 2010?
29)How to deploy Silverlight Webparts?
30)Issues on Migration and How to solve that?

Igate questions:

1)What are the picture Libraries?
2)How can upload multiple pictures?
3)Difference between Sp 2007 ans Sp 2010?
4)How can Configure the SSP in SP 2010?
5)What are the Webservices?
6)Difference beetween form library and document library?
7)Write code to fetch the users in list?
8)Admin Repoting Kit(ARK)?
9)Blob Caching?
10)Search Services in moss 2007 and Sp 2010?

Logica questions:

1)What is the Webpart Development and Deployment in Sharepoint

   2007/2010? How to do Step by Step?
2)What is the Site Definitation? How to do?
3)What is Feature and Feature Stappling?
4)How to generate the WSP in Moss 2007?
5)Difference between Site Definition and Site Template?
6)What is the meaning of Ghosting and Unghosting in Sharepoint?
7)What is the Extend Web Application?When your creating the extend Web

   application,it will store the same database or create any  new database?
8)How to deploy SilverLight Web part in Sharepoint 2010?
9)What is Powershell?Comparision between Stsadm and Powershelll?Which

   one is better?
10)What is IFS(Infopath Form Service).How to publish the Forms to Sharepoint

    site?

11)Site Pages and Application Pages?
12)Sharepoint Programming.
13)Sharepoint 2010 Architecture.

INTERVIEW QUESTIONS in real time:

1)Tell me the sharepoint execution process?
2) What is the necessary file in modifying the masterpage?
3) What is content type? and what is the use?
4) How many content types in sharepoint?
5) How to modify column name in custom list?
6) what are the webpart's u developed?
7) what is the advantages of sharepoint designer?
8) How to build webpart? what is the necessary file we want?
9) What is wsp? How to create .wsp file? what we want to build wsp file?
10)how to use master page in sharepoint?
11)How can u deploy the webpart to sharepoint gallery?

    Sub question : ( I don’t want to put the assembly in GAC i want that is as

    a private assembly )
    Why it s necessary to mention that is a safecontrol ?

12)How to crate & place themes in Share point sites?
13)How can u call the custom CSS in Share point?
14)How many types of permissions in Share point?
15)How to change the default date format (mm/dd/yyyy) to jan-01-2008?
16)Explain BDC? Why to go for BDC?
17)In how many ways backup and restore the SharePoint site?
18)What is Audience targeting?
19)Can u write the code to copy the existing list to another list?
20)What is the use of STSADM tool?
21)How to create & delete list using object data model?
22)Did u create any workflows in ur project ? what are the workflows u created

    (and either by using sharepoint designer or visual studio)
23)Difference between Sequential workflow and state machine Workflow ?
24)How do u debug the workflows ( how do u handle exceptions) ?
25)Can we generate the strong name key to private assembiles ?
26)How can u deploy the webpart to sharepoint gallery?
    Sub question : ( I don’t want to put the assembly in GAC i want that is as

                           a private assembly )
27)Why it s necessary to mention that is a safecontrol ?
